Fall 2017 Homework Assignments
A dipole p = j p is placed at the origin. (j is the unit vector in the y-direction.) A point charge Q is placed a distance R away from the origin, on the x-axis. Find the forces and the torques on the system and verify that the total force and torque on the system is zero. (Hint: To find the force and the torque on the dipole, model it as two point charges a distance d apart, then evaluate the proper limit as d approaches zero.)
We are interested in finding the potential in the subspace defined by 0 < x < ∞ , 0 < y < ∞ , -∞ < z < ∞ . The boundary at y = 0 is kept at zero potential. The boundary at x = 0 is kept at a constant potential Vo. Using the Green's Function methodology, find the integral which gives the potential at arbitrary points inside the subspace.

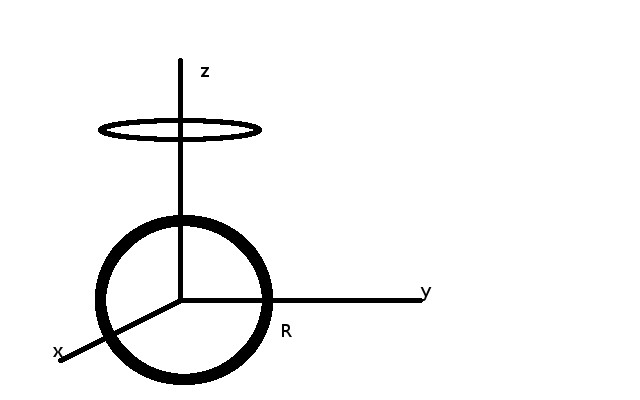

A conducting grounded spherical shell of radius R is centered on the origin. A uniformly charged thin ring with radius r and total charge Q is centered around the z-axis, outside the sphere, at a distance D from the origin. Find the image of the ring-charge inside the sphere, and use that to determine the electric potential at all points on the z-axis.

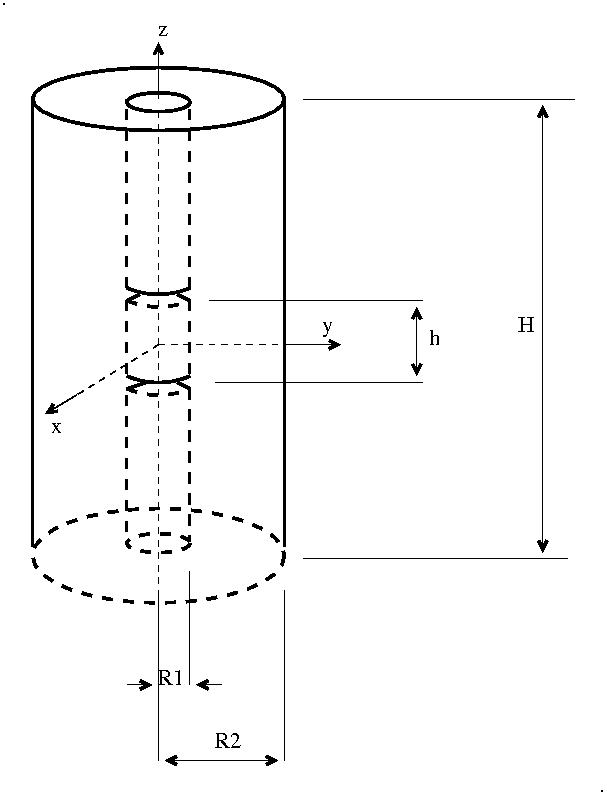

Find the potential inside the cylindrical region -H/2 < z < H/2 and R1 < ρ < R2 for the configuration in the figure. The surfaces at z=±H/2 and at ρ=R2 are at zero potential. The surface at ρ=R1 has potential Vo for |z|<h/2 and zero for h/2<|z|<H/2 . Extra credit: Obtain a computer plot of this potential as a function of ρ and z. Assign proper numerical values to the parameters so that you obtain a pretty picture. (We may hold a beauty contest among participants.)

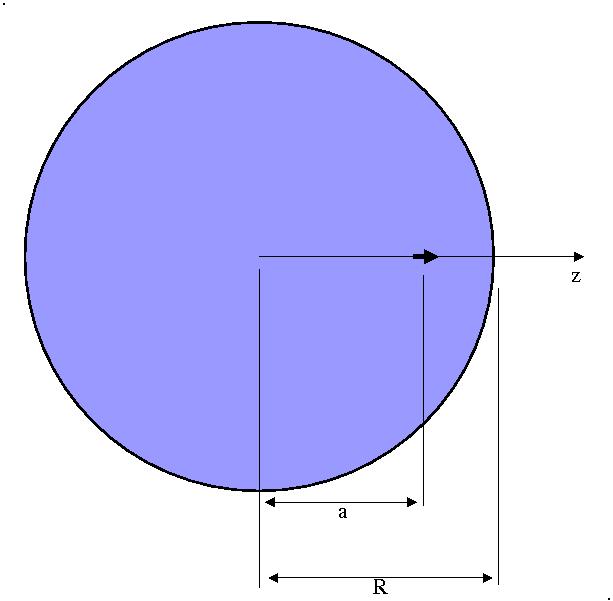

A dipole of magnitude p and pointing in the z-direction is placed on the z-axis, at z=a. The spherical region with radius R, centered at the origin, has permittivity ε. Rest of the space has permittivity εo. Find the expansion coefficients for the potential for r<R and r>R. Comment on the terms associated with l=0 and l=1. Extra credit: Repeat the above problem when the dipole is pointing in the x-direction (but still on the z-axis). Note that this is now a much more difficult problem. (The geometry no longer has azimuthal symmetry.) Therefore, do not start this part until after the exam.
