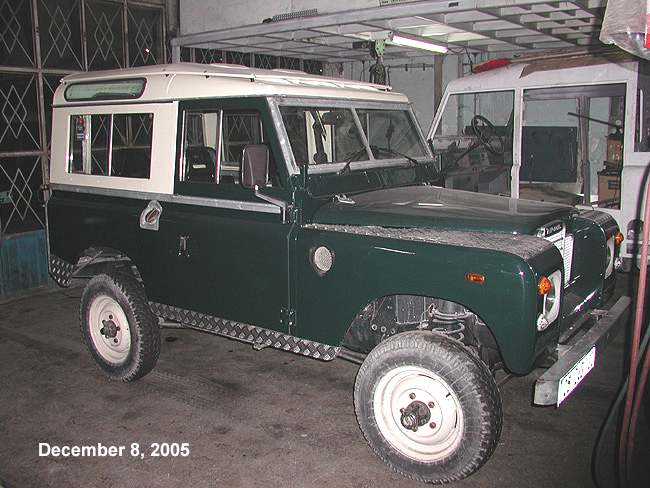

LAND ROVER - SERIES III, 1983

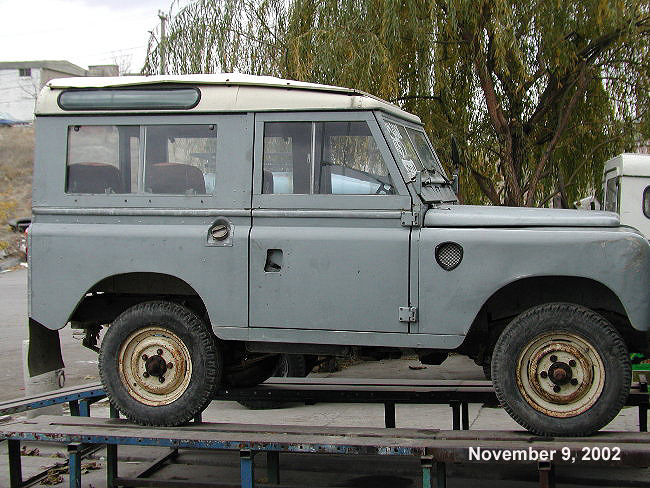

  • This is a 1983 Series ///. I bought it from the auction on September 2002. It had 2.25 lt petrol engine, 4 speed manual gear box, four wheel leaf spring, four wheel drum break and standard steering wheel.
  • First the engine was checked and tuned-up. Now, it runs perfectly.

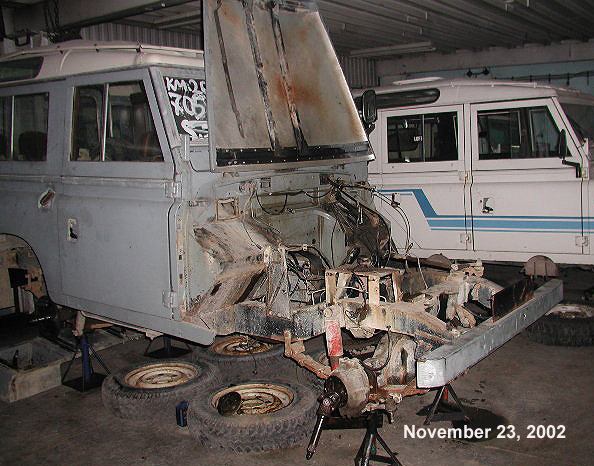

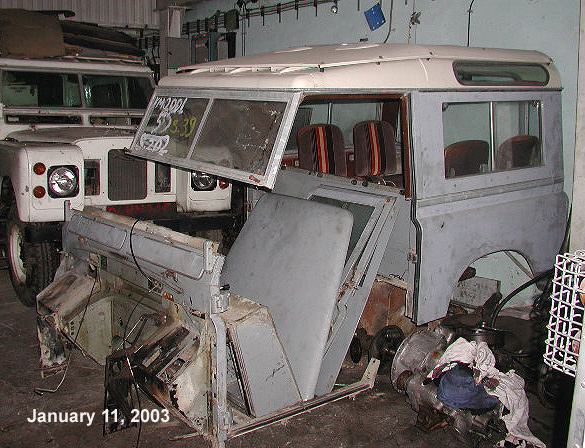

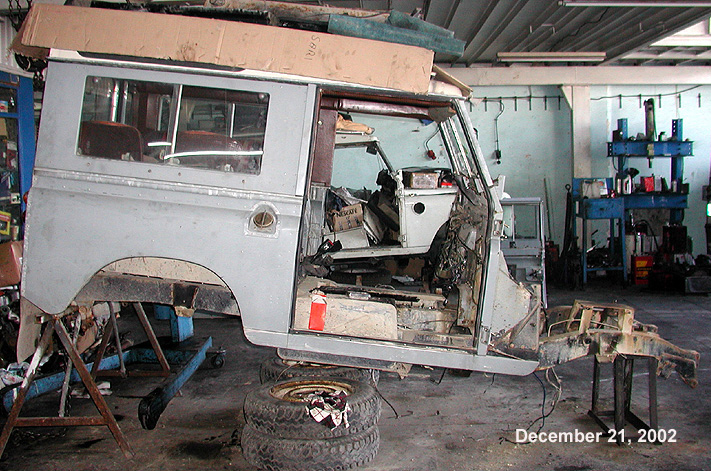

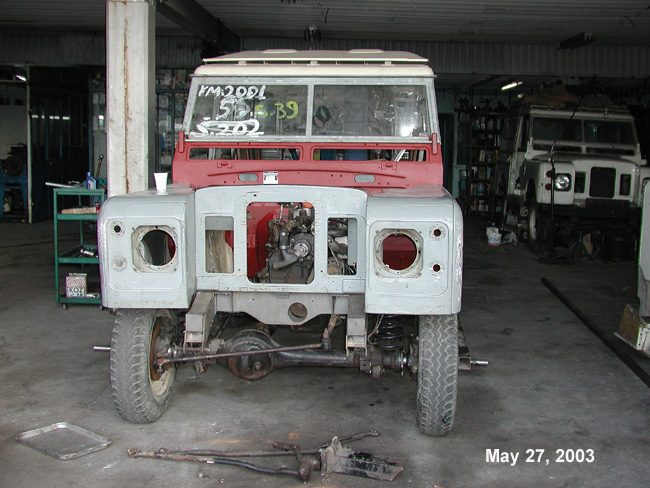

  • After that every single piece was taken apart.
  • The body and the frame look O.K. except some small rusty spots.

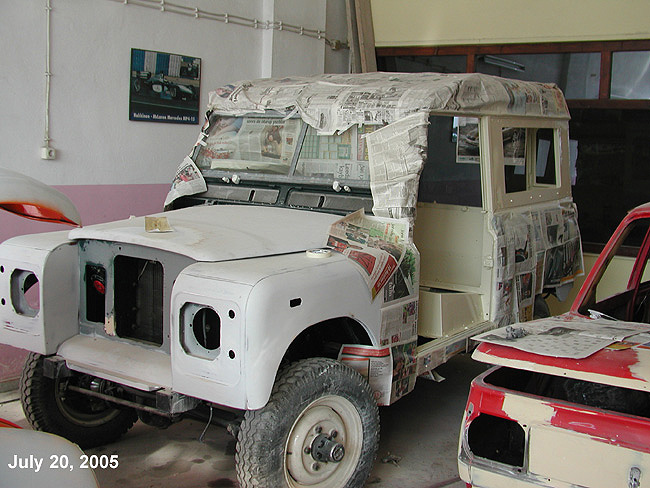

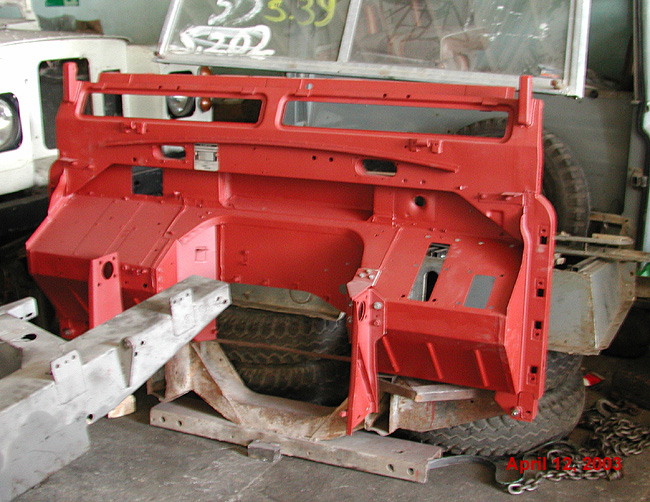

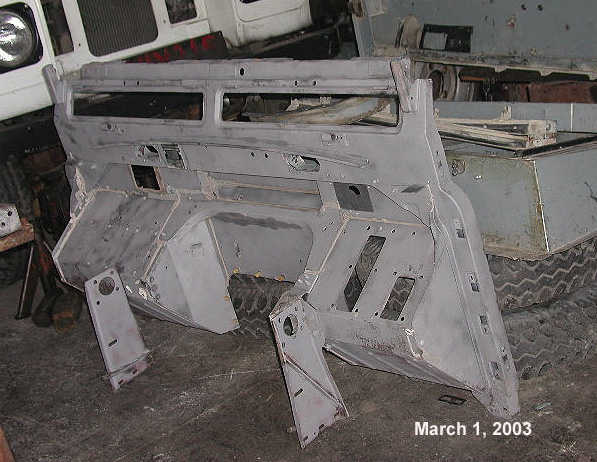

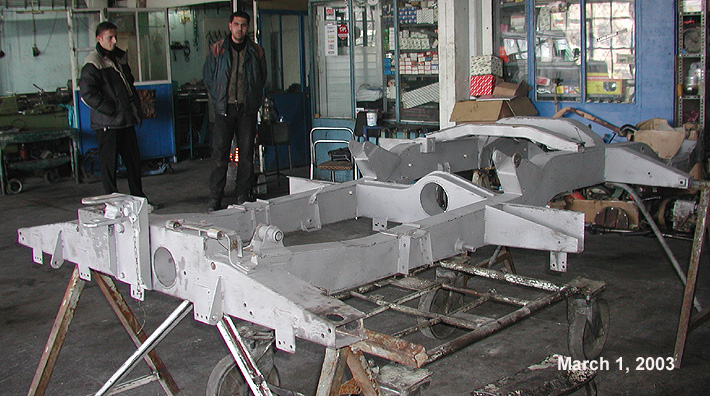

  • Non-aluminum parts of the body and the frame were sanded.

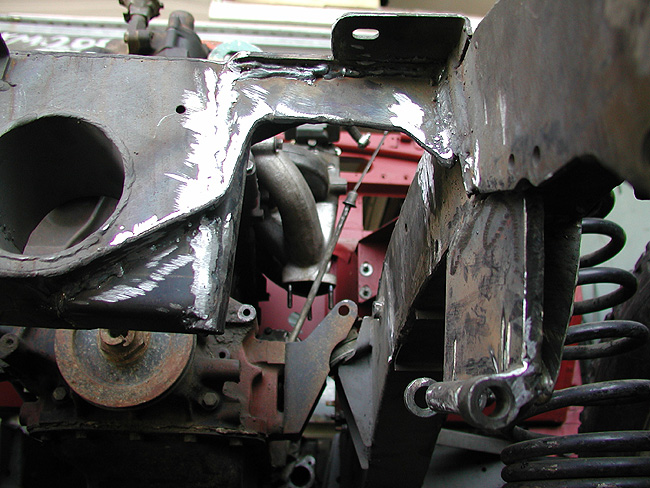

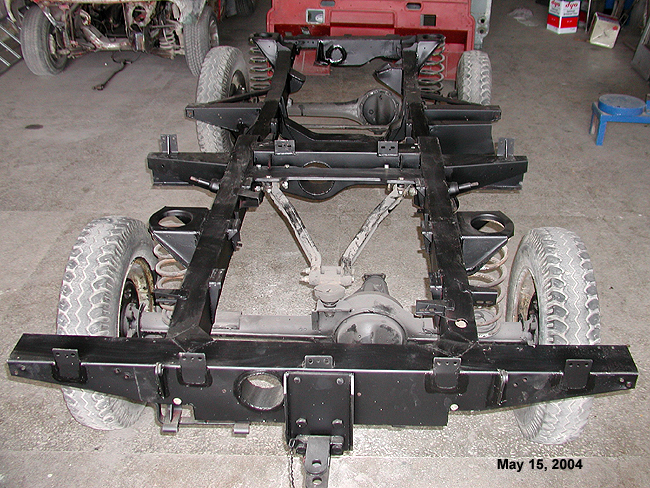

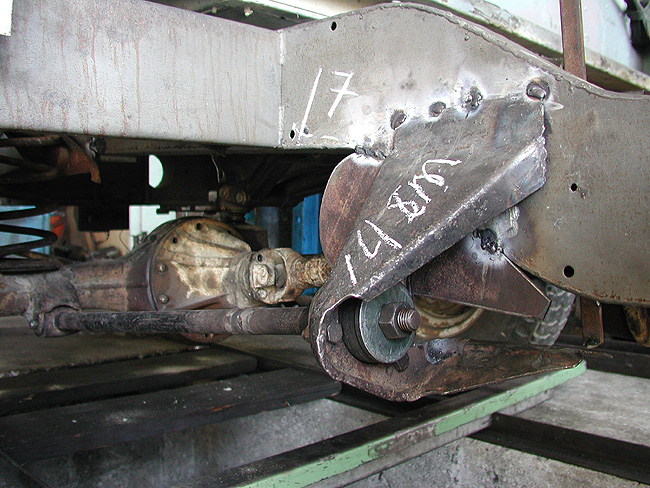

  • Some modifications on the frame was done.

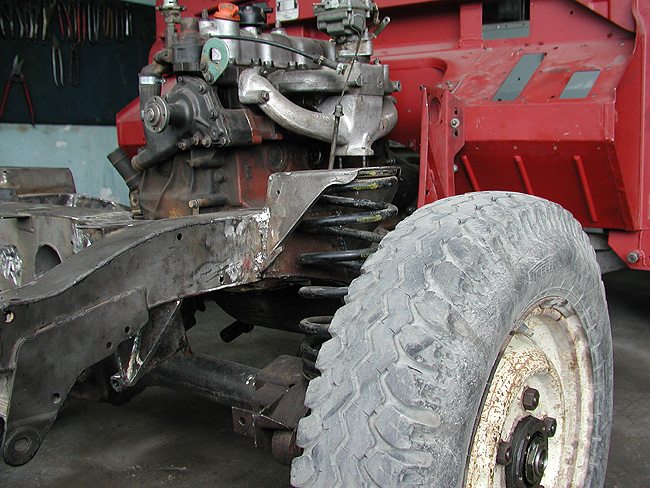

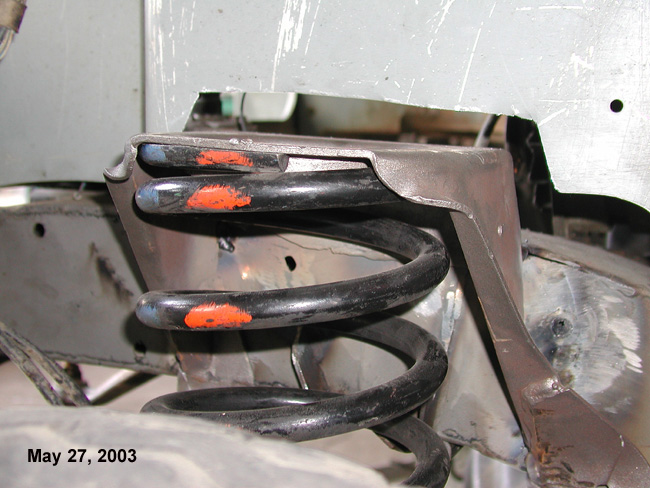

    • Changed to four wheel coil spring

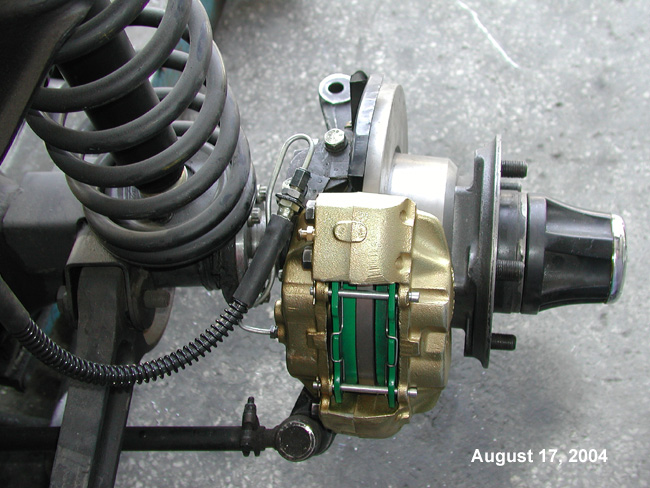

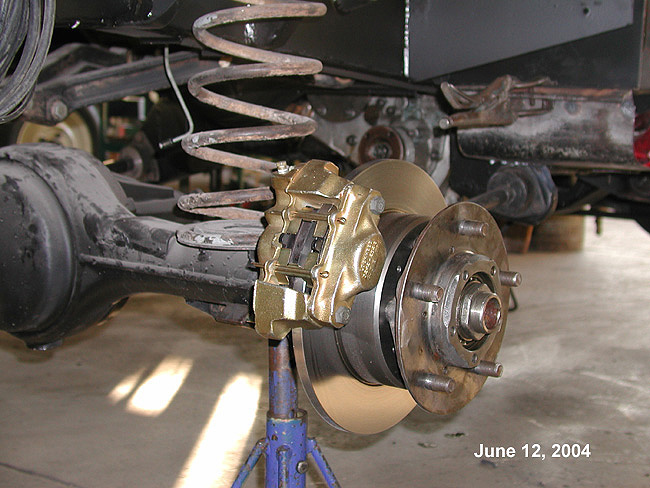

    • Changed to four wheel disc break : Defender-110

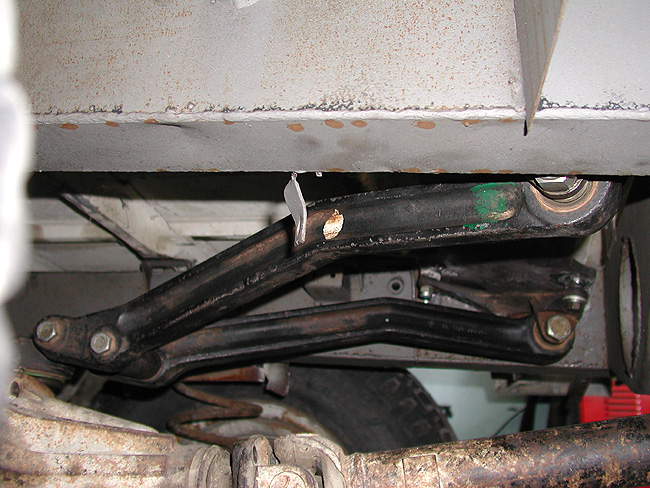

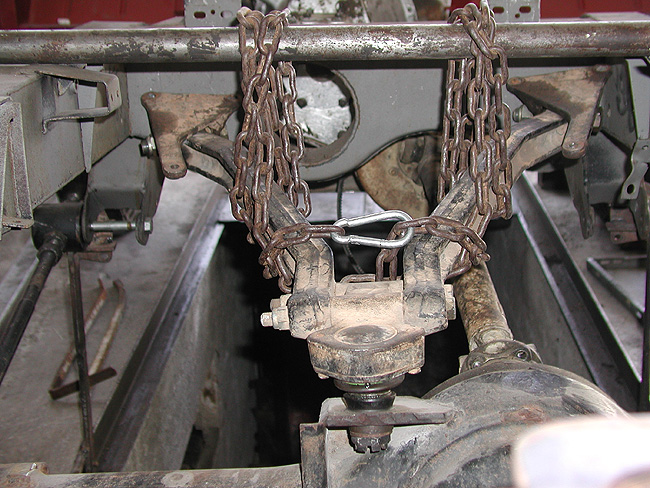

    • Front and rear axles are replaced with Range Rover axles
    • SP bearing housings : Defender-110

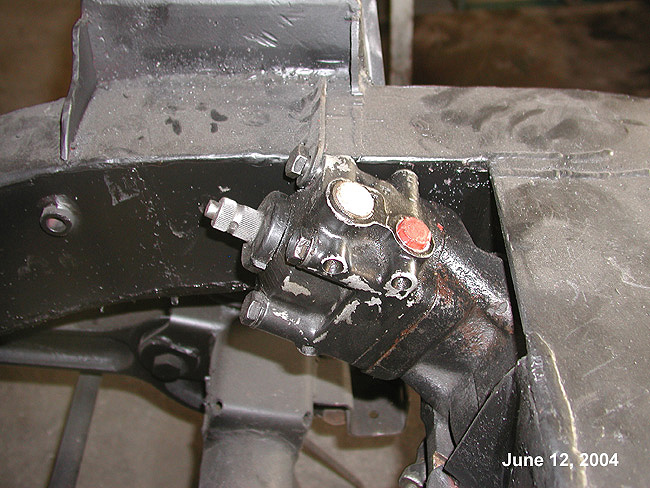

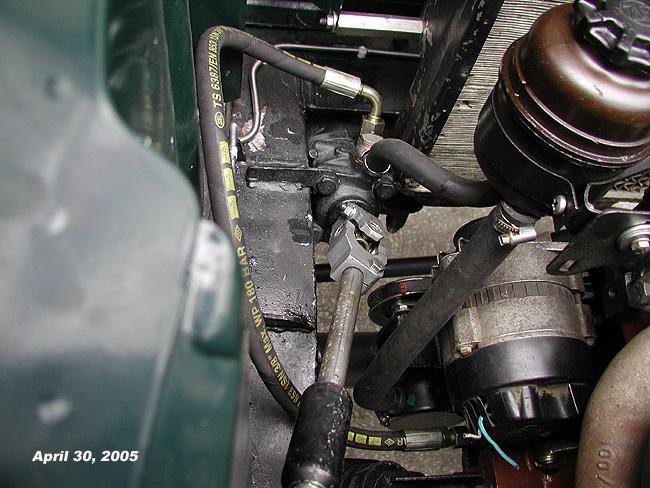

    • Steering wheel is powered with box BMW-5 Series and with Defender steering column.

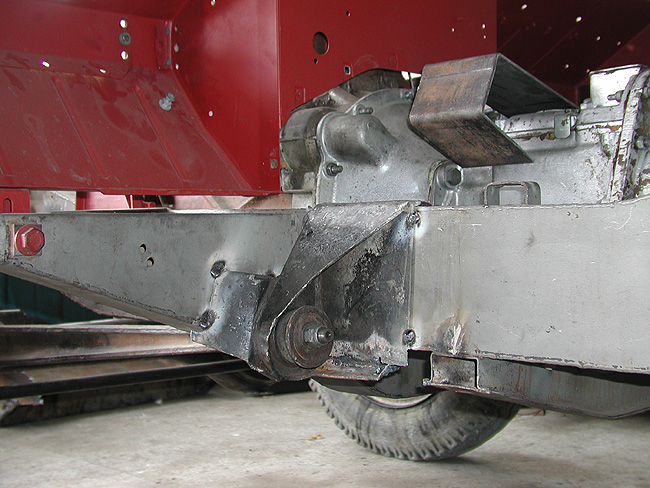

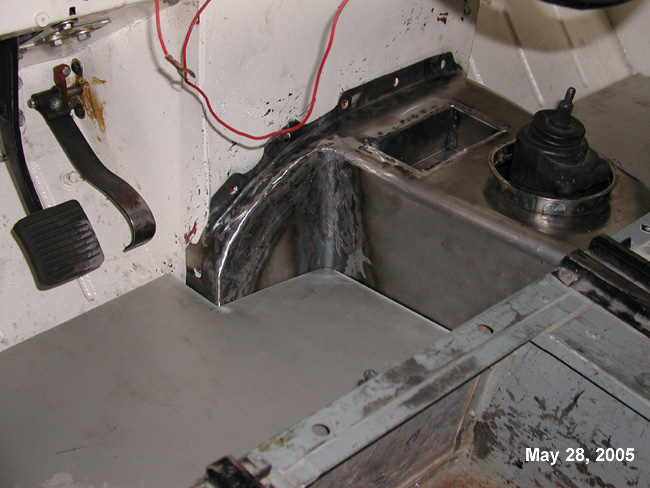

    • Gear box was replaced with Defender 5 speed manual gear box, but the transfer box is the original one.


                       LR-1.jpg (169685 bytes)    LR-3.jpg (142429 bytes)  LR-4.jpg (239676 bytes)  LR-5.jpg (160135 bytes)

                       LR-6.jpg (165186 bytes)     LR-7.jpg (154264 bytes)    LR-8.jpg (186366 bytes)     LR-9.jpg (192427 bytes)

                       LR-12.jpg (135982 bytes)   lr-13.jpg (133899 bytes)   lr-20.jpg (174488 bytes)    lr-14.jpg (200308 bytes)    lr-15.jpg (168959 bytes)

                       lr-19.jpg (198613 bytes)   lr-16.jpg (197340 bytes)   lr-21.jpg (185604 bytes)    LR-10.jpg (178343 bytes)    LR-11.jpg (155939 bytes)





















.
